Regulators and Voltage Converters

Regulators | Voltage Converters


(Top | Voltage Converters)

Click on image for a larger version.

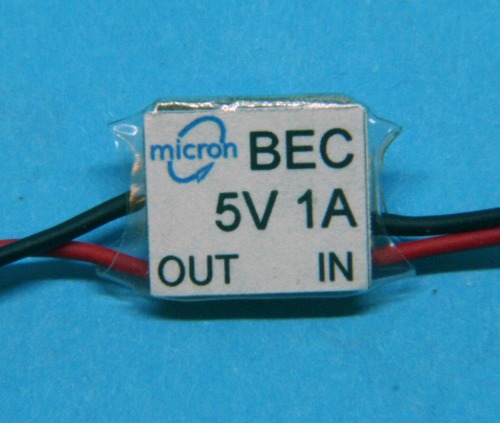

Micron BEC 5V 1A

A lightweight linear 5V 1A voltage regulator that enables you to power a small receiver and micro-servos from a 2-cell (7.4V) LiPo battery pack. Available with 100mm bare end input and output leads or with 40mm leads terminated with female JST-RCY (red JST) socket for input and JR/Hitec plug for output. Size: 14 (+leads) x 11 x 4 mm, weight: 1.5g with 100mm bare-end leads and 1.9g with leads/connectors.

It is designed primarily for gliders and small I/C models using 2S LiPo packs for their higher capacity and lighter weight.

Please contact us if you need a BEC with different connectors.

Select type:

Voltage Converters

(Top | Regulators)

Click on image for a larger version.

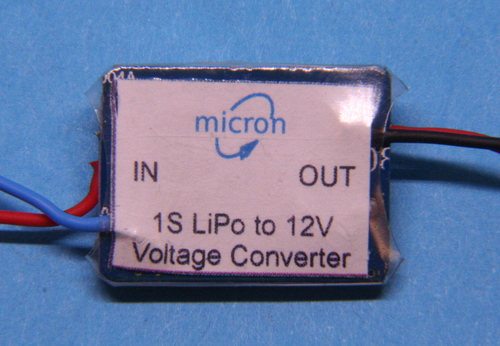

Voltage Upconverter - 1S LiPo to 6V, 9V or 12V, 1A

A small voltage converter module for generating 5V, 9V or 12V from a single LiPo cell - ideal for use with a Micron MR601 model rail receiver. Size: 27 x 18 x 5 mm + leads, Weight: 2.4g.

The converter can handle a maximum of 2A and is best run with no more than 1.8A input unless it is supplied with plenty of cooling air. With a single LiPo input, up to 800mA output at 12V can be expected.

Supplied with 100mm lead-out wires: input is red/blue; output is red/black.

Select type:

Click on image for a larger version.

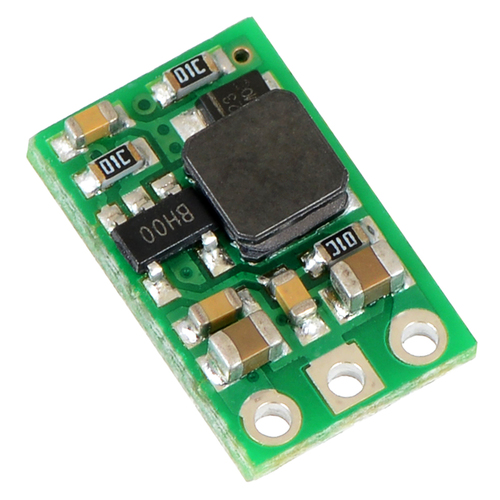

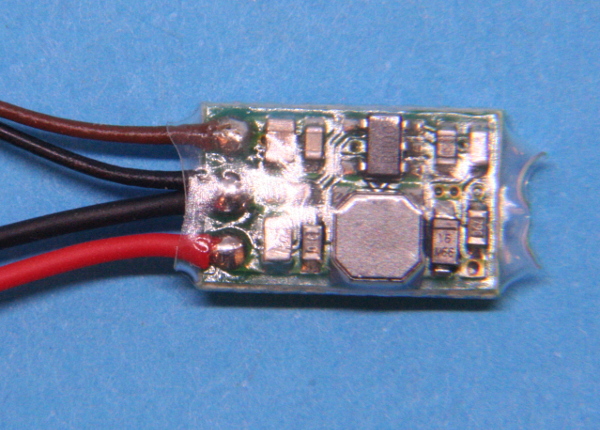

Voltage Upconverter - 1S LiPo to 5V, 9V or 12V, 0.4A

A tiny voltage upconverter for generating 5V, 6V, 9V or 12V at 0.4A max from a single LiPo cell.

Size: Size: 13 x 8.5 x 5 mm, Weight: 1.5g. Available as a bare board with solder pads and with lead-out wires plus heatshrink covering.

Please select bare board or lead options from the menu below:
Select type:
