These servos are designed to work on the voltage range from a single LiPo cell (3V - 4.2V). Most have a specified maximum working voltage of 5V; some customers report that they work OK on 5V, but this cannot be guaranteed. If you want to use them on a 5V system (e.g. BEC output from 2S ESC), then a power silicon diode (e.g. IN4001) should be used in the positive lead from BEC to receiver/servos to drop the voltage to approximately 4.3V.
|
Click on image for a larger version.
|

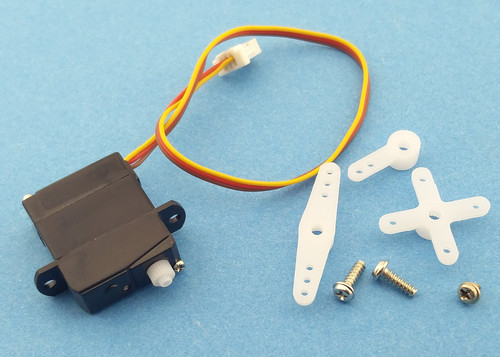

1.7gm Micro Digital Servo
(Top | 2.2gm | 1.4g Lin | SG90 | ES08MDII | HS-82MG | HS-322HD | Servo Tape | AS2000L Mechanics)
An ultra micro rotary output servo for use on single LiPo cell R/C systems. Weighs 2.0gm complete with output disk, wires and connector.
Supplied with 3 types of output arm: single, double & cross. The single arm is 8.5mm from centre of pivot to the end of the arm, the double arm is 10mm from centre of pivot and 20mm overall diameter, the cross arm is 14mm in diameter and 7mm in radius. Available with JST-SH (1mm), Molex Picoblade (1.25mm) and JST-ZH (1.5mm) connectors, all on 100mm leads.
| Specification, |
|---|
| Size (LxWxH): | 14 x 6.2 x 18 mm |
| Weight: | 1.7 gm |
| Torque: | 0.075 kg/cm @ 4.2V |
| Speed: | 0.05 sec/60° @ 4.2V |
|
|
|
Click on image for a larger version.
|

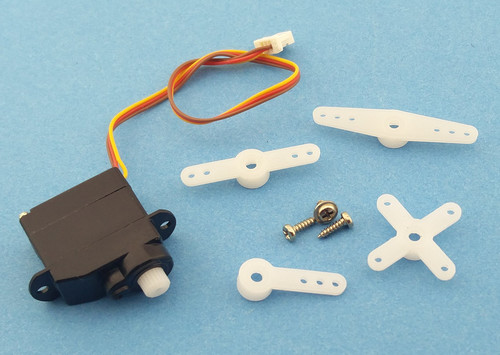

2.2gm Micro Servo
(Top | 1.7gm | 1.4g Lin | SG90 | ES08MDII | HS-82MG | HS-322HD | Servo Tape | AS2000L Mechanics)
A micro conventional rotary output servo for use on single LiPo cell R/C systems. Weighs 2.6gm complete with output disk and 100mm wires plus connector.
Available with JST-SH (1mm) and Molex Picoblade (1.25mm) connectors.
| Specification, |
|---|
| Size (LxWxH): | 16 x 8 x 20 mm |
| Weight: | 2.5 gm |
| Torque: | 0.2 kg/cm @ 3.7V |
| Speed: | 0.08 sec/60° @ 3.7V |
|
|
|
Click on image for a larger version.
|

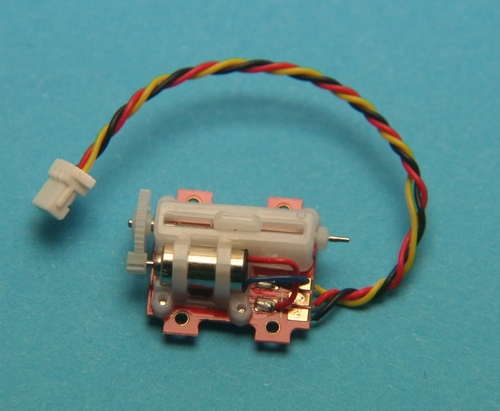

'SuperMicro' Micro 1.4g Linear Servo
(Top | 1.7gm | 2.2gm | SG90 | ES08MDII | HS-82MG | HS-322HD | Servo Tape | AS2000L Mechanics)
A micro linear servo for single LiPo cell operation. Supplied with 60mm lead and JST-SH plug. Compatible with Spektrum AR6410 and DT Rx33.
The operating force is 35g and the speed is 0.12s at 4.2V for a linear travel of 8mm.
| Specification, |
|---|
| Size (LxWxH): | 18.1 x 15.2 x 7.8 mm |
| Weight: | 1.4 gm |
| Force: | 35 gm @ 4.2V |
| Speed: | 0.12 sec end-to-end @ 4.2V |
|
|
|
|
|
|
|
Click on image for a larger version.
|

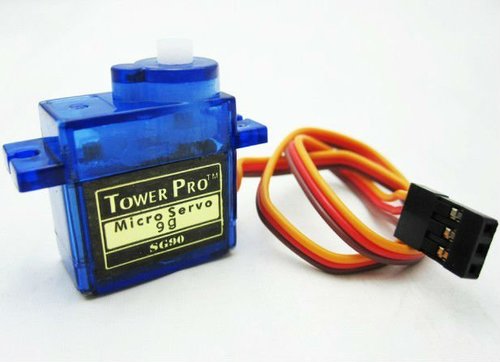

Tower Pro SG90 9g Servo
(Top | 1.7gm | 2.2gm | 1.4g Lin | ES08MDII | HS-82MG | HS-322HD | Servo Tape | AS2000L Mechanics)
A small, lightweight servo with high output power. Ideal for controlling model railway turnouts and signals.
| Specification, |
|---|
| Size (LxWxH): | 23 x 12.2 x 29 mm |
| Weight: | 9 gm |
| Torque: | 1.8 kg/cm @ 4.8V |
| Speed: | 0.1 sec/60° @ 4.8V |
£ 2.95
Temporarily out of stock. Please
email to register interest.
|
|
|
Click on image for a larger version.
|

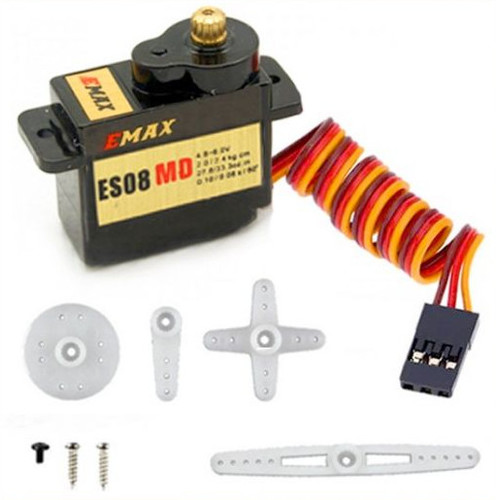

Emax ES08MDII 12g Metal Gear Digital Servo
(Top | 1.7gm | 2.2gm | 1.4g Lin | SG90 | HS-82MG | HS-322HD | Servo Tape | AS2000L Mechanics)
A small yet strong servo with metal gears. High torque output. Suitable for larger park flyers and ideal for use on the regulator for small live steam locos.
| Specification, |
|---|
| Size (LxWxH): | 23.6 x 11.5 x 27.75 mm |
| Weight: | 12 gm |
| Torque: | 1.6 kg/cm @ 4.8V |
| Speed: | 0.12 sec/60° @ 4.8V |
|
|
|
Click on image for a larger version.
|

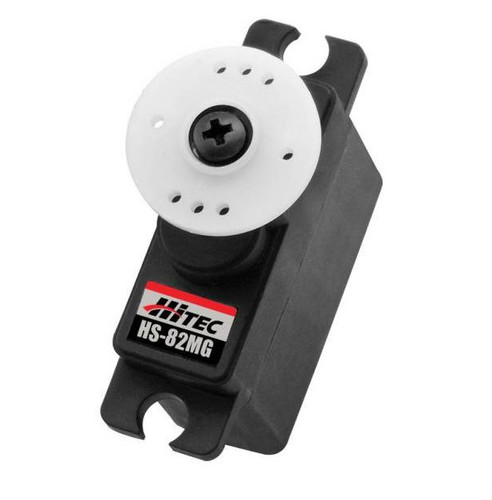

Hitec HS-82MG Mini Servo With Metal Gears
(Top | 1.7gm | 2.2gm | 1.4g Lin | SG90 | ES08MDII | HS-322HD | Servo Tape | AS2000L Mechanics)
A powerful and robust mini servo. Based on the ultra popular HS-81MG the HS-82MG gets a new stronger motor and updated electronics for more precise centring.
| Specification, |
|---|
| Size (LxWxH): | 29.8 x 12.0 x 29.6 mm |
| Weight: | 19 gm |
| Torque: | 3.4 kg/cm @ 6V |
| Speed: | 0.1 sec/60° @ 6V |

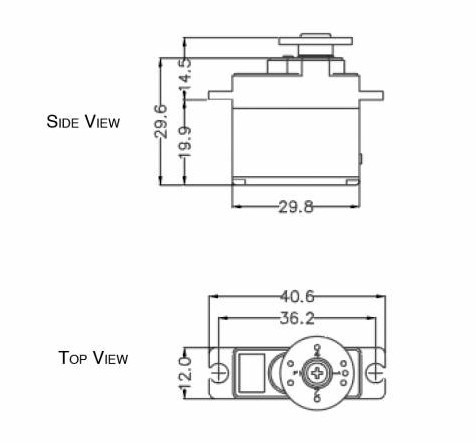

HS-82MG Drawing
|
|
|
Click on image for a larger version.
|

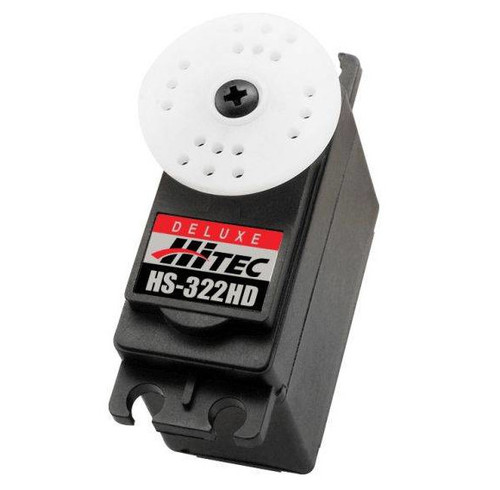

Hitec HS-322HD Heavy Duty Servo
(Top | 1.7gm | 2.2gm | 1.4g Lin | SG90 | ES08MDII | HS-82MG | Servo Tape | AS2000L Mechanics)
The HS-322HD Standard Heavy Duty Servo utilises Hitec's revolutionary Karbonite gear train which is four times stronger than standard white nylon gears, and even after hundreds of thousands of cycles they don't show any signs of wear
| Specification, |
|---|
| Size (LxWxH): | 40.0 x 20.0 x 36.5 mm |
| Weight: | 43 gm |
| Torque: | 3.7 kg/cm @ 6V |
| Speed: | 0.15 sec/60° @ 6V |

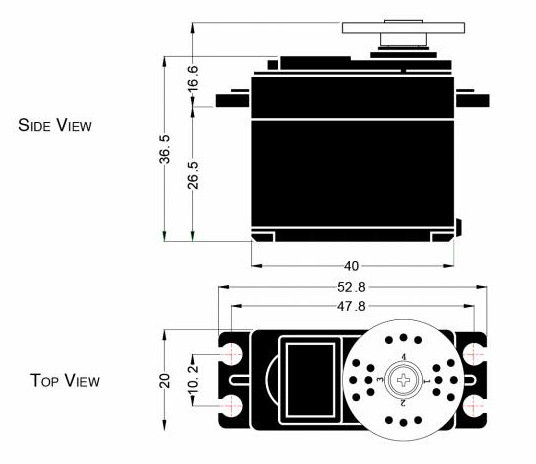

HS-322HD Drawing
|
|
|
|
|
|
|
|
Servo Mount Tape (Thin)
(Top | 1.7gm | 2.2gm | 1.4g Lin | SG90 | ES08MDII | HS-82MG | HS-322HD | AS2000L Mechanics)
Thin foam sticky pads for mounting small servos or other R/C gear.
£ 0.95
Temporarily out of stock. Please
email to register interest.
|
|
|
Click on image for a larger version.
|

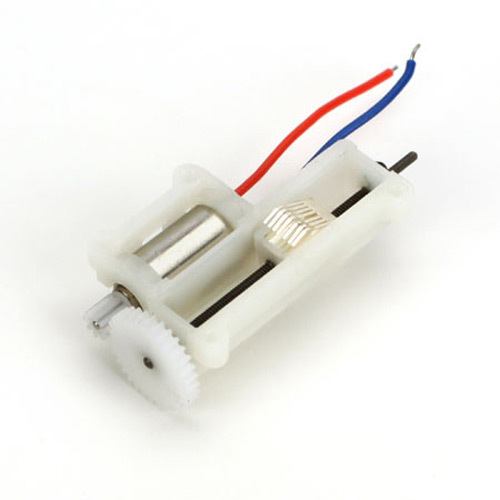

Replacement Servo Mechanics for AR6400L / AS2000L (SPM6832)
(Top | 1.7gm | 2.2gm | 1.4g Lin | SG90 | ES08MDII | HS-82MG | HS-322HD | Servo Tape)
Replacement long throw servo unit for the AR6400L. Requires soldering to fit.
|
