Micron MR001d DSM2/DSMX Receiver for Land-Based Vehicles


Click on image for a larger version.
Micron MR001d 2.4GHz DSM2/DSMX Receiver

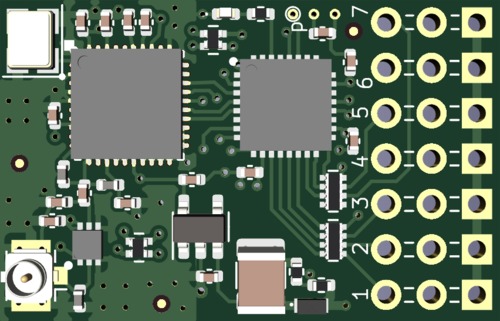

MR001d is a small (30 x 18 x 11mm) DSM2/DSMX compatible receiver with 11 servo and on/off outputs. 7 outputs are via 'standard' 0.1 inch pitch pins at the front of the receiver that take JR/Hitec/Futaba connectors and 4 outputs are via an optional JST-SH connector at the rear (aerial end).

MR001d is suitable for use in live-steam and large battery electric locos. It can drive speed controllers, servos and LEDs (auto-directional lights and manually switched from the transmitter). The dimensions allow it to fit easily into many 32/45mm steam or diesel locomotives.

The voltage range is 3.5V to 8.4V so is best powered from a 4 or 5 cell NiMH battery for live-steam or from the 5V BEC speed controller output for battery electric locos. If you need to power from a single LiPo cell, a 5V or 6V booster may be used.

MR001d is compatible with all Micron model rail transmitters, and Spektrum compatible stick-type aicraft transmitters (e.g. DX6). Selecta is supported for use with Tx22 and Tx24 type transmitters. Selecta is disabled by default but easily enabled using the supplied jumper plug. MR001d must be bound to a transmitter before use and will automatically enter bind mode if a previously bound transmitter signal is not found within 5 seconds of switch on. A jumper plug placed across signal pins 5 & 7 will force MR001d into bind mode immediately after switch-on. Auto bind may be disabled if required.

All MR001d outputs can be configured for servo or 0V/3.3V switched, the standard configuration provides 5 servo outputs and 2 directional LED outputs on the JR connector pins (P1 to P7) and momentary plus latching switched outputs on the optional JST-SH connector (P8 to P11) (other configurations of servo and switched outputs can be provided to special order).

Weight: 4.5gm, dimensions: 30mm x 18mm x 11mm.

From: £22.00

Selecta, Throttle and Wiring Options:
Selecta:

Selecta (loco selection with Tx22, Tx24, etc). When Selecta is enabled, P2 is set to R/C ch7. The default is Selecta disabled.

Aerial:

Select the extended aerial if MR001d will be enclosed within a metal bodied vehicle

Throttle Control:

The full-range to centre-off option is for use with external ESC allowing use of a low-off transmitter control. Selection of throttle behaviour affects the auto-direction lights and emergency stop.

P1-P7 pins:
P8-P11 Socket:
Output Config:

The standard and alternative output pin configurations are described on the Configuration tab. MR001d outputs can be changed by programming.

There are currently 0 options selected. Click deselect to cancel all option selections.

Base Price: £ 22.00 Total Price: £ 22.00

Click on image for a larger version.
JR Plug & 2 Wire Lead For MR00x Receiver (pair)

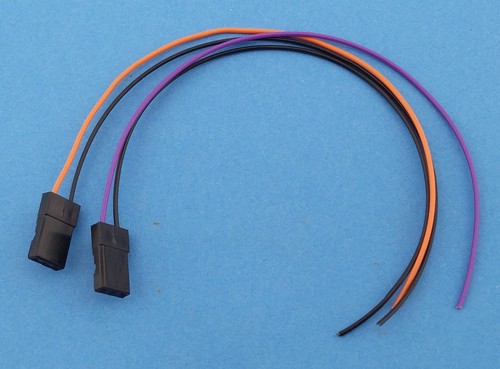

A pair of 150mm lead-out wires for front & rear lights (P6 & P7) on MR00x receivers.

See the MR001 ESC & Lighting document for LED connection information.

£ 1.45

Click on image for a larger version.
JR Plug & 3 Wire Lead For Sound Triggers From MR00x Receiver

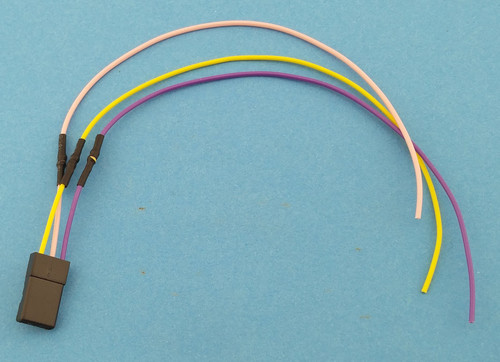

A JR plug and 3 x 150mm lead-out wires with series 4k7 ohm resistors for connecting MyLocoSound triggers to P3, P4 & P5 on MR00x receivers.

£ 1.95
